lineType

0, 1, 2 or 3

0: a parallel that should be displayed. 1: a meridian that should be displayed. 2: a parallel that runs through the center of a cell row and carries a row label attribute; should not be displayed as a line. 3: a meridian that runs through the center of a cell column and carries a column label attribute; should not be displayed as a line.

garsType

#keyLine, #quadrantLine, #cellLine, #cellColumn and #cellRow

A meridian or a parallel that is visualized as a line will have garsType = #keyLine if it separates GARS keys, garsType = #quadrantLine if it separates GARS quadrants, or garsType = #cellLine if it separates GARS cells. The invisible auxiliary lines will have garsType = #cellColumn if they carry a cell column label, or garsType = #cellRow if the carry a cell row label.

degrees

A string

The latitude of a visible parallel (with lineType = 0) or the longitude of a visible meridian (with lineType = 1), formatted according to LongLatFormat.

value

A string

A GARS cell row label attached to an invisible parallel (with lineType = 2), or a GARS cell column label attached to an invisible meridian (with lineType = 3). The default visualization will display these labels near the map window margins if MaxCellLabelScale ≤ View.NominalScale < MaxScale.

impactAngleAtStart

A double, usually between 0° and 90°

The angle between the line start and the edge of the map.

impactAngleAtFinish

A double, usually between 0° and 90°

The angle between the line end and the edge of the map.

startType

#left, #bottom, #right, #top, #interior

Tells where a line feature starts (lines go eastward or northward).

finishType

#left, #bottom, #right, #top, #interior

Tells where a line feature finishes (lines go eastward or northward).

lineWeight

1, 2 or 3

This attribute is attached to the visible lines of the graticule. Its value depends on both view scale and garsType, and it can be used to select line width; see Table 3 below.

garsLabelWeight

1, 2 or 3

This attribute is attached to the invisible auxiliary lines. Its value depends on both view scale and garsType, and it can be used to select GARS label size; see Table 3 below.

garsType

#key, #quadrant or #cell

A polygon feature that represents a LongLat square will have garsType = #key, #quadrant or #cell, depending on its size.

value

A GARS label

The GARS label for a key, quadrant or cell.

height

An integer

The height in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer.ClipToViewArea = True.)

width

An integer

The width in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer.ClipToViewArea = True.)

garsLabelWeight

1, 2 or 3

A weight that depends on both view scale and garsType, and which can be used to select GARS label size; see Table 3 below.

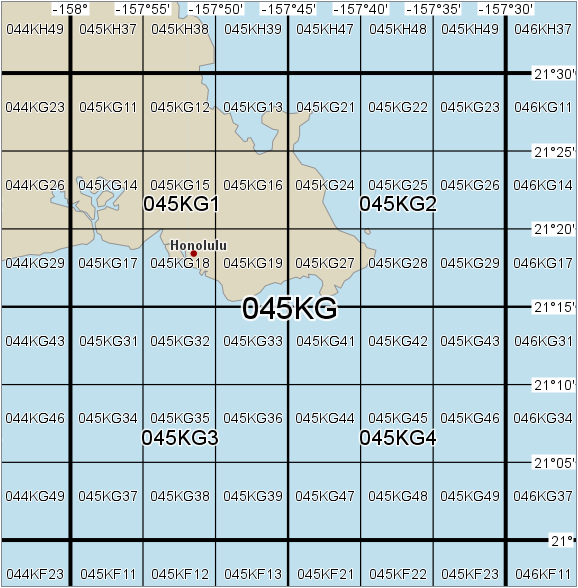

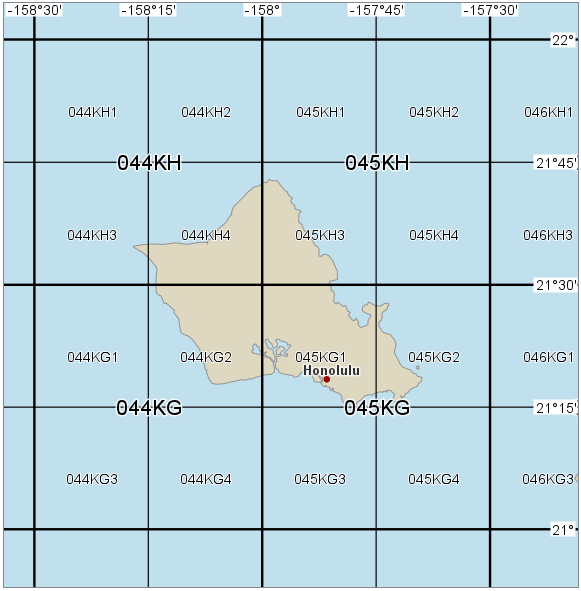

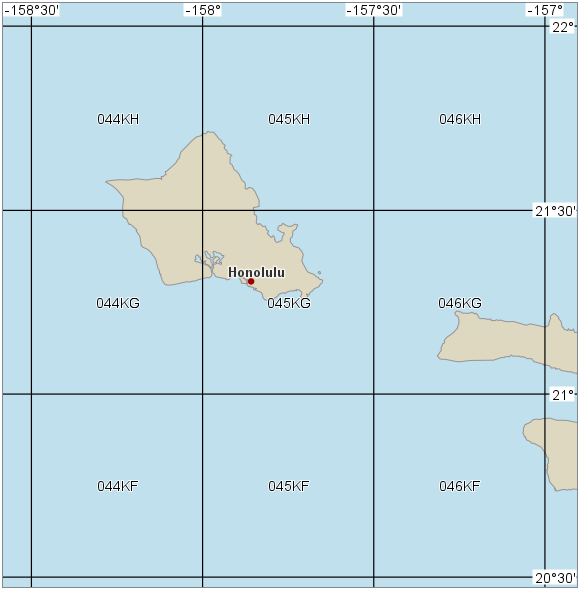

garsLabelWeight of cell labels, or lineWeight of cell borders

3

2

1

garsLabelWeight of quadrant labels, or lineWeight of quadrant borders

2

1

N/A

garsLabelWeight of key labels, or lineWeight of key borders

1

N/A

N/A

lineType

0, 1, 2 or 3

0: a parallel that should be displayed. 1: a meridian that should be displayed. 2: a parallel that runs through the center of a cell row and carries a row label attribute; should not be displayed as a line. 3: a meridian that runs through the center of a cell column and carries a column label attribute; should not be displayed as a line.

garsType

#keyLine, #quadrantLine, #cellLine, #cellColumn and #cellRow

A meridian or a parallel that is visualized as a line will have garsType = #keyLine if it separates GARS keys, garsType = #quadrantLine if it separates GARS quadrants, or garsType = #cellLine if it separates GARS cells. The invisible auxiliary lines will have garsType = #cellColumn if they carry a cell column label, or garsType = #cellRow if the carry a cell row label.

degrees

A string

The latitude of a visible parallel (with lineType = 0) or the longitude of a visible meridian (with lineType = 1), formatted according to longLatFormat.

value

A string

A GARS cell row label attached to an invisible parallel (with lineType = 2), or a GARS cell column label attached to an invisible meridian (with lineType = 3). The default visualization will display these labels near the map window margins if maxCellLabelScale ≤ View::nominalScale < maxScale.

impactAngleAtStart

A double, usually between 0° and 90°

The angle between the line start and the edge of the map.

impactAngleAtFinish

A double, usually between 0° and 90°

The angle between the line end and the edge of the map.

startType

#left, #bottom, #right, #top, #interior

Tells where a line feature starts (lines go eastward or northward).

finishType

#left, #bottom, #right, #top, #interior

Tells where a line feature finishes (lines go eastward or northward).

lineWeight

1, 2 or 3

This attribute is attached to the visible lines of the graticule. Its value depends on both view scale and garsType, and it can be used to select line width; see Table 3 below.

garsLabelWeight

1, 2 or 3

This attribute is attached to the invisible auxiliary lines. Its value depends on both view scale and garsType, and it can be used to select GARS label size; see Table 3 below.

garsType

#key, #quadrant or #cell

A polygon feature that represents a LongLat square will have garsType = #key, #quadrant or #cell, depending on its size.

value

A GARS label

The GARS label for a key, quadrant or cell.

height

An integer

The height in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer::clipToViewArea = True.)

width

An integer

The width in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer::clipToViewArea = True.)

garsLabelWeight

1, 2 or 3

A weight that depends on both view scale and garsType, and which can be used to select GARS label size; see Table 3 below.

garsLabelWeight of cell labels, or lineWeight of cell borders

3

2

1

garsLabelWeight of quadrant labels, or lineWeight of quadrant borders

2

1

N/A

garsLabelWeight of key labels, or lineWeight of key borders

1

N/A

N/A

lineType

0, 1, 2 or 3

0: a parallel that should be displayed. 1: a meridian that should be displayed. 2: a parallel that runs through the center of a cell row and carries a row label attribute; should not be displayed as a line. 3: a meridian that runs through the center of a cell column and carries a column label attribute; should not be displayed as a line.

garsType

#keyLine, #quadrantLine, #cellLine, #cellColumn and #cellRow

A meridian or a parallel that is visualized as a line will have garsType = #keyLine if it separates GARS keys, garsType = #quadrantLine if it separates GARS quadrants, or garsType = #cellLine if it separates GARS cells. The invisible auxiliary lines will have garsType = #cellColumn if they carry a cell column label, or garsType = #cellRow if the carry a cell row label.

degrees

A string

The latitude of a visible parallel (with lineType = 0) or the longitude of a visible meridian (with lineType = 1), formatted according to longLatFormat.

value

A string

A GARS cell row label attached to an invisible parallel (with lineType = 2), or a GARS cell column label attached to an invisible meridian (with lineType = 3). The default visualization will display these labels near the map window margins if maxCellLabelScale ≤ View.nominalScale < maxScale.

impactAngleAtStart

A double, usually between 0° and 90°

The angle between the line start and the edge of the map.

impactAngleAtFinish

A double, usually between 0° and 90°

The angle between the line end and the edge of the map.

startType

#left, #bottom, #right, #top, #interior

Tells where a line feature starts (lines go eastward or northward).

finishType

#left, #bottom, #right, #top, #interior

Tells where a line feature finishes (lines go eastward or northward).

lineWeight

1, 2 or 3

This attribute is attached to the visible lines of the graticule. Its value depends on both view scale and garsType, and it can be used to select line width; see Table 3 below.

garsLabelWeight

1, 2 or 3

This attribute is attached to the invisible auxiliary lines. Its value depends on both view scale and garsType, and it can be used to select GARS label size; see Table 3 below.

garsType

#key, #quadrant or #cell

A polygon feature that represents a LongLat square will have garsType = #key, #quadrant or #cell, depending on its size.

value

A GARS label

The GARS label for a key, quadrant or cell.

height

An integer

The height in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer.clipToViewArea = True.)

width

An integer

The width in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer.clipToViewArea = True.)

garsLabelWeight

1, 2 or 3

A weight that depends on both view scale and garsType, and which can be used to select GARS label size; see Table 3 below.

garsLabelWeight of cell labels, or lineWeight of cell borders

3

2

1

garsLabelWeight of quadrant labels, or lineWeight of quadrant borders

2

1

N/A

garsLabelWeight of key labels, or lineWeight of key borders

1

N/A

N/A

lineType

0, 1, 2 or 3

0: a parallel that should be displayed. 1: a meridian that should be displayed. 2: a parallel that runs through the center of a cell row and carries a row label attribute; should not be displayed as a line. 3: a meridian that runs through the center of a cell column and carries a column label attribute; should not be displayed as a line.

garsType

#keyLine, #quadrantLine, #cellLine, #cellColumn and #cellRow

A meridian or a parallel that is visualized as a line will have garsType = #keyLine if it separates GARS keys, garsType = #quadrantLine if it separates GARS quadrants, or garsType = #cellLine if it separates GARS cells. The invisible auxiliary lines will have garsType = #cellColumn if they carry a cell column label, or garsType = #cellRow if the carry a cell row label.

degrees

A string

The latitude of a visible parallel (with lineType = 0) or the longitude of a visible meridian (with lineType = 1), formatted according to longLatFormat.

value

A string

A GARS cell row label attached to an invisible parallel (with lineType = 2), or a GARS cell column label attached to an invisible meridian (with lineType = 3). The default visualization will display these labels near the map window margins if maxCellLabelScale ≤ View.nominalScale < maxScale.

impactAngleAtStart

A double, usually between 0° and 90°

The angle between the line start and the edge of the map.

impactAngleAtFinish

A double, usually between 0° and 90°

The angle between the line end and the edge of the map.

startType

#left, #bottom, #right, #top, #interior

Tells where a line feature starts (lines go eastward or northward).

finishType

#left, #bottom, #right, #top, #interior

Tells where a line feature finishes (lines go eastward or northward).

lineWeight

1, 2 or 3

This attribute is attached to the visible lines of the graticule. Its value depends on both view scale and garsType, and it can be used to select line width; see Table 3 below.

garsLabelWeight

1, 2 or 3

This attribute is attached to the invisible auxiliary lines. Its value depends on both view scale and garsType, and it can be used to select GARS label size; see Table 3 below.

garsType

#key, #quadrant or #cell

A polygon feature that represents a LongLat square will have garsType = #key, #quadrant or #cell, depending on its size.

value

A GARS label

The GARS label for a key, quadrant or cell.

height

An integer

The height in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer.clipToViewArea = True.)

width

An integer

The width in pixels of a polygon feature representing a LongLat square, if it were clipped to the view area. (The polygon will not really be clipped, but you may want to use PointVisualizer.clipToViewArea = True.)

garsLabelWeight

1, 2 or 3

A weight that depends on both view scale and garsType, and which can be used to select GARS label size; see Table 3 below.

garsLabelWeight of cell labels, or lineWeight of cell borders

3

2

1

garsLabelWeight of quadrant labels, or lineWeight of quadrant borders

2

1

N/A

garsLabelWeight of key labels, or lineWeight of key borders

1

N/A

N/A
