GarsGridGenerator.LineWidth Property
Gets or sets the line width for the meridians and parallels.
Thread safety: This property is not thread-safe. Show
Syntax
public AttributeVariable< System.Double > LineWidth { get; set; }Property Value
Type: An attribute variable that returns a value of type System.Double.
Default: 0.0
The line width for the meridians and parallels.
Default: 0.0
The line width for the meridians and parallels.
Remarks

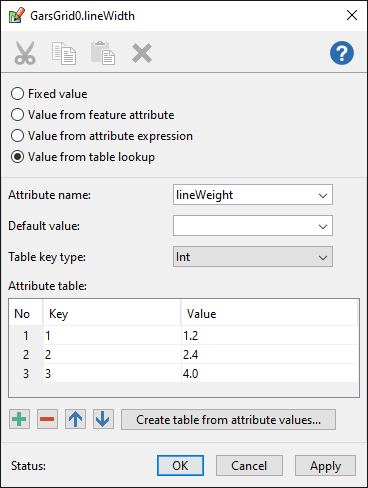

If the result is zero (the default), the generator will use a sensible line width based on the lineWeight attribute, which is calculated from the View scale and the type of line (cell border, quadrant border or key border). Technically, the default line width would look like this if it were defined in Carmenta Studio:
 |
How the auto-generated line width is determined if lineWidth is not specified.
So if you want larger or smaller differences between the various line widths, you can let LineWidth be a similar lineWeight-dependent attribute variable that you specify yourself.
Platforms
Windows, Linux, Android
