AirspaceCoverageOperator Class
Computes and merges viewsheds of multiple observers according to customizable settings.
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CEOperators assembly)
Syntax
public class AirspaceCoverageOperator : LineOfSightOperatorRemarks
There is an introductory Visibility Guide, which you can read in parallel with this reference manual. There is also a sample configuration airspace_coverage.px that you can try out in Carmenta Explorer.
AirspaceCoverageOperator is a variation of LineOfSightOperator that, in addition to calculating viewsheds, also merges the generated viewsheds according to a customizable condition. The most basic use case, which is also the default behavior for this operator, is to provide the union of all viewsheds. More complicated analysis is also possible, such as finding areas covered by at least two viewsheds of one type and one of another type; see MinObservers and ObserverTypeConditions for information on how to customize the merging behavior.
 |

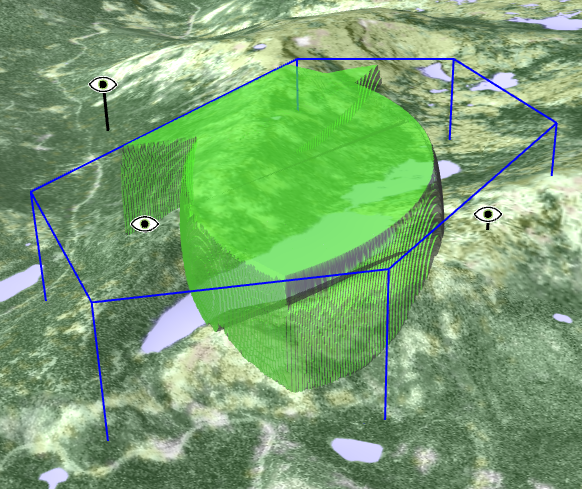

AirspaceCoverageOperator internally works with a three-dimensional volume representation of the viewsheds and can hence handle arbitrary vertical overlaps of viewsheds (including partial overlaps).
All output types supported by LineOfSightOperator are also supported by this operator. In addition, this operator provides OutputCoverageRaster.
Internally, the operator represents altitudes above sea level in meters as signed 16-bit integers, and the two largest such integers have special meanings, so the highest representable altitude is 32 765 meters above sea level.
This operator uses the global cache to store its calculated output features, so it can often reuse a cached result instead of recomputing it. Note that changing any properties of the operator, any ObserverInput features or the AreaOfInterestInput will automatically invalidate the cached features.
To be able to cache and reuse its merged results well, the operator is very greedy when requesting features from ObserverInput and AreaOfInterestInput: it will always request data from these inputs from the whole world, regardless of the current View.Area. So, to avoid overwhelming the operator, your application must ensure that the memory dataset of observers contains only a limited number of point features that are all near the area of interest, or near each other if no area of interest is given.
Using a layer with a dynamic cache mode
The operator also supports the OrdinaryLayer cache modes Dynamic and DynamicAsync, which is unique since the operator will merge several input features into one output feature: such merging is normally impossible under a dynamic cache mode. When a dynamic cache mode is used, the ID-giving input will be the ObserverInput. If all features coming from the ObserverInput originate in the same MemoryDataSet, your application can ask for a refreshed presentation in one of two ways: either call
MemoryDataSet.RefreshFeaturePresentation(feature, false)
for a specific feature that has been edited, or call
MemoryDataSet.RefreshAllFeaturePresentation(false).
The OrdinaryLayer will understand that even if just one feature is asked to be refreshed, the entire dynamic cache must be flushed since any single feature may affect the whole result from this operator. This means that if a configuration with an AirspaceCoverageOperator is opened in Carmenta Explorer, the usual editing tool will ensure that the dynamic cache is updated when observers are edited. However, if the observer features originate in two or more memory datasets, then the application must call
MemoryDataSet.RefreshAllFeaturePresentation(false).
The AreaOfInterestInput, if any, will usually get data from another memory dataset, but note that this is not the ID-giving input, which means that the dynamic cache will assume that these data are static. So, special application logic is needed to handle modifications of the area of interest; see OrdinaryLayerCacheMode for details. Unfortunately, this is not something that Carmenta Explorer will do automatically. So when trying out configurations in Carmenta Explorer, it is best to let the area-of-interest polygon be displayed in a non-selectable layer, so that it cannot be edited.
