LineOfSightOperator.CarrierType Property

Gets or sets an enumeration value, telling if the observer is ground-based or airborne.

Syntax

public AttributeVariable< CarrierType > CarrierType { get; set; }

Property Value

Type: An attribute variable that returns a value of type CarrierType.
Default: GroundBased
Specifies whether the observer is ground-based or airborne.

Remarks

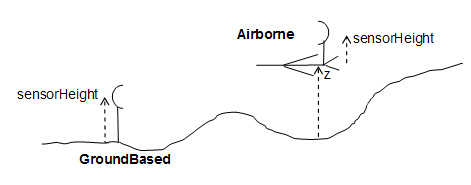

If GroundBased, the sensor will be placed SensorHeight above ground, and the z value of the observer feature will be ignored.
If Airborne, the sensor will be placed SensorHeight above an airborne carrier, whose altitude depends on the z value of the observer feature. The meaning of z is given by the ObserverHeightType, which can be AboveSeaLevel, AboveGround, or AboveTreetops.

To the right in the image, the ObserverHeightType is AboveGround.

Remember that the SensorHeight and the z value is expressed in the VerticalUnit.

Example

// Configure LineOfSightOperator for an Airplane with the camera directed straight down,
// giving a picture that covers 10 degrees fore-to-aft and 20 degrees port-to-starboard
public static void ConfigureLineOfSightOperatorForAirplaneCamera(
    LineOfSightOperator lineOfSightOperator)
{
    // This property is a member of a type that might be referred to by a View
    // or a GlobeView, either directly or indirectly through other objects, which means
    // that you must use the Guard class to take the global configuration lock when it
    // is modified to synchronize access with any running Carmenta Engine threads.
    using (Guard guard = new Guard())
    {
        // Set the CarrierType to airborne
        lineOfSightOperator.CarrierType = CarrierType.Airborne;

        // Set the PictureDirection to starboard. This is 90 degrees clockwise from the course,
        // which we assume is available from a Course attribute.
        lineOfSightOperator.PictureDirection =
            new ExpressionAttributeVariable<double>(
                "if Course != null then Course + 90.0 else 90.0");

        // Set the Picture elevation to the Roll attribute minus 90 degrees
        // (we assume that positive roll means starboard up).
        lineOfSightOperator.PictureElevation =
            new ExpressionAttributeVariable<double>(
                "if Roll != null then Roll - 90.0 else - 90.0");

        // Set the PictureHeight to 20 degrees
        lineOfSightOperator.PictureHeight = 20.0;

        // Set the PictureWidth to 10 degrees
        lineOfSightOperator.PictureWidth = 10.0;

        // Set the VerticalUnit to Meter (Default is Meter)
        lineOfSightOperator.VerticalUnit = LengthUnit.Meter;

        // Set the VerticalRotationAxis to false, since this is not a radar system
        // that rotates around a vertical axis, but a fixed camera.
        lineOfSightOperator.VerticalRotationAxis = false;
    }
}

Platforms

Windows, Linux, Android

LineOfSightOperator::carrierType Property

Gets or sets an enumeration value, telling if the observer is ground-based or airborne.

Syntax

C++

public:
CarrierTypeAttributeVariablePtr carrierType ( ) const;
void carrierType ( const CarrierTypeAttributeVariablePtr& value )

Property Value

Type: An attribute variable that returns a value of type CarrierType.
Default: CarrierTypeGroundBased
Specifies whether the observer is ground-based or airborne.

Remarks

If GroundBased, the sensor will be placed sensorHeight above ground, and the z value of the observer feature will be ignored.
If Airborne, the sensor will be placed sensorHeight above an airborne carrier, whose altitude depends on the z value of the observer feature. The meaning of z is given by the observerHeightType, which can be AboveSeaLevel, AboveGround, or AboveTreetops.

To the right in the image, the observerHeightType is AboveGround.

Remember that the sensorHeight and the z value is expressed in the verticalUnit.

Example

C++

// Configure LineOfSightOperator for an Airplane with the camera directed straight down,
// giving a picture that covers 10 degrees fore-to-aft and 20 degrees port-to-starboard
static void configureLineOfSightOperatorForAirplaneCamera(
    LineOfSightOperatorPtr lineOfSightOperator)
{
    // This property is a member of a type that might be referred to by a View
    // or a GlobeView, either directly or indirectly through other objects, which means
    // that you must use the Guard class to take the global configuration lock when it
    // is modified to synchronize access with any running Carmenta Engine threads.
    Guard guard;

    // Set the CarrierType to airborne
    lineOfSightOperator->carrierType(
        new DirectCarrierTypeAttributeVariable(CarrierTypeAirborne));

    // Set the PictureDirection to starboard. This is 90 degrees clockwise from the course,
    // which we assume is available from a Course attribute.
    lineOfSightOperator->pictureDirection(
        new ExpressionDoubleAttributeVariable(
            "if Course != null then Course + 90.0 else 90.0"));

    // Set the Picture elevation to the Roll attribute minus 90 degrees
    // (we assume that positive roll means starboard up).
    lineOfSightOperator->pictureElevation(
        new ExpressionDoubleAttributeVariable(
            "if Roll != null then Roll - 90.0 else - 90.0"));

    // Set the PictureHeight to 20 degrees
    lineOfSightOperator->pictureHeight(new DirectDoubleAttributeVariable(20.0));

    // Set the PictureWidth to 10 degrees
    lineOfSightOperator->pictureWidth(new DirectDoubleAttributeVariable(10.0));

    // Set the VerticalUnit to Meter (Default is Meter)
    lineOfSightOperator->verticalUnit(LengthUnit::meter());

    // Set the VerticalRotationAxis to false, since this is not a radar system
    // that rotates around a vertical axis, but a fixed camera.
    lineOfSightOperator->verticalRotationAxis(new DirectBoolAttributeVariable(false));
}

Platforms

Windows, Linux, Android

LineOfSightOperator.carrierType Property

Gets or sets an enumeration value, telling if the observer is ground-based or airborne.

Syntax

Java

public final CarrierTypeAttributeVariable getCarrierType ( );
public final void setCarrierType ( CarrierTypeAttributeVariable value );

Property Value

Type: An attribute variable that returns a value of type CarrierType.
Default: GROUNDBASED
Specifies whether the observer is ground-based or airborne.

Remarks

If GroundBased, the sensor will be placed sensorHeight above ground, and the z value of the observer feature will be ignored.
If Airborne, the sensor will be placed sensorHeight above an airborne carrier, whose altitude depends on the z value of the observer feature. The meaning of z is given by the observerHeightType, which can be AboveSeaLevel, AboveGround, or AboveTreetops.

To the right in the image, the observerHeightType is AboveGround.

Remember that the sensorHeight and the z value is expressed in the verticalUnit.

Example

Java

// Configure LineOfSightOperator for an Airplane with the camera directed straight down,
// giving a picture that covers 10 degrees fore-to-aft and 20 degrees port-to-starboard
public static void configureLineOfSightOperatorForAirplaneCamera(
    LineOfSightOperator lineOfSightOperator)
{
    // This property is a member of a type that might be referred to by a View
    // or a GlobeView, either directly or indirectly through other objects, which means
    // that you must use the Guard class to take the global configuration lock when it
    // is modified to synchronize access with any running Carmenta Engine threads.
    Guard guard = new Guard();
    try
    {
        // Set the CarrierType to airborne
        lineOfSightOperator.setCarrierType(
            new DirectCarrierTypeAttributeVariable(CarrierType.AIRBORNE));

        // Set the PictureDirection to starboard. This is 90 degrees clockwise from the course,
        // which we assume is available from a Course attribute.
        lineOfSightOperator.setPictureDirection(
            new ExpressionDoubleAttributeVariable(
                "if Course != null then Course + 90.0 else 90.0"));

        // Set the Picture elevation to the Roll attribute minus 90 degrees
        // (we assume that positive roll means starboard up).
        lineOfSightOperator.setPictureElevation(
            new ExpressionDoubleAttributeVariable(
                "if Roll != null then Roll - 90.0 else - 90.0"));

        // Set the PictureHeight to 20 degrees
        lineOfSightOperator.setPictureHeight(new DirectDoubleAttributeVariable(20.0));

        // Set the PictureWidth to 10 degrees
        lineOfSightOperator.setPictureWidth(new DirectDoubleAttributeVariable(10.0));

        // Set the VerticalUnit to Meter (Default is Meter)
        lineOfSightOperator.setVerticalUnit(LengthUnit.getMeter());

        // Set the VerticalRotationAxis to false, since this is not a radar system
        // that rotates around a vertical axis, but a fixed camera.
        lineOfSightOperator.setVerticalRotationAxis(new DirectBoolAttributeVariable(false));
    }
    finally
    {
        guard.dispose();
    }
}

Platforms

Windows, Linux, Android

LineOfSightOperator.carrierType Property

Gets or sets an enumeration value, telling if the observer is ground-based or airborne.

Syntax

Python

carrierType

Property Value

Type: An attribute variable that returns a value of type CarrierType.
Default: CarrierType.GroundBased
Specifies whether the observer is ground-based or airborne.

Remarks

If GroundBased, the sensor will be placed sensorHeight above ground, and the z value of the observer feature will be ignored.
If Airborne, the sensor will be placed sensorHeight above an airborne carrier, whose altitude depends on the z value of the observer feature. The meaning of z is given by the observerHeightType, which can be AboveSeaLevel, AboveGround, or AboveTreetops.

To the right in the image, the observerHeightType is AboveGround.

Remember that the sensorHeight and the z value is expressed in the verticalUnit.

Example

Python

# This example is not available in the selected language.

Platforms

Windows, Linux, Android
