TargetLineOfSightOperator Class
Computes whether there are free lines of sight between observers and targets.
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CEOperators assembly)
Syntax
public class TargetLineOfSightOperator : LineOfSightOperatorRemarks
There is an introductory Visibility Guide, which you should read in parallel with this reference manual.
As input, the TargetLineOfSightOperator takes a set of point observers from ObserverInput, a set of point targets from TargetInput, a numeric raster with ground elevations above sea level from ElevationInput, and optionally another numeric raster with treetop heights above ground from TreeHeightInput. If a CustomPropagation is used, the operator can also take a numeric raster from AuxiliaryRasterInput.
The operator can work in two modes: binary or continuous.
In the binary mode, the operator calculates whether or not there is a free line-of-sight between each pair of observer and target. This mode is active if the standard line-of-sight propagation model is used, or if the operator uses a CustomPropagation model whose output type is a kind of height.
In the continuous mode, the operator calculates a real number – a propagation value – between each pair of observer and target. This mode is active if the operator uses a CustomPropagation model whose output type is Other.
Binary mode

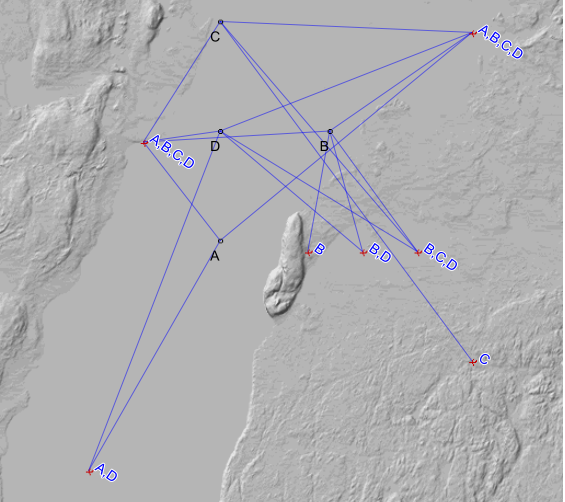

The output is the stream of targets with new attributes, telling which observers can see it. Optionally, the operator can generate a line feature for each free line of sight from an observer to a target, or a line feature for each interrupted line of sight from an observer to the first obstructing terrain; see OutputSightLines.
If the operator uses a CustomPropagation model whose output type is a kind of height, then the height values are interpreted as defining the bottom surface of the viewshed volume, while the top surface is generated by the standard propagation model, so the operator can figure out whether or not a target is inside the viewshed in the usual way. However, interrupted lines of sight are not supported by a CustomPropagation.
 |
Each output target gets several new attributes. As an example, let us say that two observers come from ObserverInput, one with an attribute Name: "Argus", the other with an attribute Name: "Monitor". We let the ObserverName property be an IndirectAttributeVariable<System.String> that just looks up the Name attribute. Then, each target can get the following new attributes:
Attribute | Type | Meaning |
|---|---|---|
seeingObservers | string | The names of all observers that can see the target, separated by the Separator, for example, "Argus;Monitor". |
visibleBy | integer | The total number of observers that can see the target. |
visibleByArgus | integer | The number of observers named "Argus" that can see the target (but only if non-zero). |
visibleByMonitor | integer | The number of observers named "Monitor" that can see the target (but only if non-zero). |
The first two attributes (seeingObservers and visibleBy) will always be added to the target, even if they become the empty string or zero. (If a target already has an attribute called seeingObservers or visibleBy when it comes to a TargetLineOfSightOperator, then the operator will ignore and overwrite the previous value.) Each of the other attributes (visibleByArgus, visibleByMonitor, etc.) is added only if it is non-zero.
To learn which observers can see a given target, it is easiest to let the application parse the value of seeingObservers.
To learn which targets a given observer can see, it may be best to let the application create a condition like visibleByArgus > 0 and use it in a special SymbolVisualizer for targets, or use it in an FilterOperator.
The ground elevation outside available data is assumed to be zero. If the input elevation raster contains cells with the Raster.UndefinedValue, the elevations in these cells are also assumed to be zero. However, a special case occurs when an observer is outside the available elevation data: then it will not affect the output. Therefore, we recommend using a global low-resolution elevation dataset, like GMTED2010, to complement any high-resolution elevation dataset with limited extent; see Multiple Resolution.
Continuous mode
If a CustomPropagation model is used whose output type is not a kind of height but Other, for example representing path loss in decibel, then the operator cannot use the propagation values to divide the targets into seen and unseen. The only thing it can do is to pass the propagation values to the output.
The most useful kind of output feature will be straight lines between each pair of observer and target for which the propagation value is not the "no signal" value. Such lines are generated if OutputSightLines = Line and will have attributes containing the observer name, the target name and the propagation value; see SightLine for details. In the continuous mode, the only supported values of OutputSightLines are Line and None.
Another kind of output feature will be copies of the target features with extra attributes. If there is a single observer named "Argus", say, that gets a well-defined propagation value to some target, then the output target feature will get an attribute named propagationFromArgus with the value. (The prefix propagationFrom cannot be modified.) However, if there are several observers named "Argus", then all their propagation values to the same target will be summed and stored in the propagationFromArgus attribute for the target. The drawback is that summation of propagation values may not make much sense, so this output mechanism is mainly useful if you can use application logic to keep all observer names unique.
In addition, the output target feature will get the attribute seeingObservers with a similar meaning as in the binary mode. But in the continuous mode, the word "seeing" does not imply a free line of sight, only that the custom propagation value was well-defined rather than the "no signal" value.
Inheritance Hierarchy
System.Object (not available in C#)
EngineObject
Operator
VisibilityOperator
LineOfSightOperator
TargetLineOfSightOperator
Platforms
Windows, Linux, Android
