TerrainSpeedOperator Class
Estimates the local speed of a terrain vehicle type on-road or off-road.
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CEOperators assembly)
Syntax
public class TerrainSpeedOperator : TerrainMobilityOperatorRemarks
For a general introduction to this and similar operators, see Terrain Vehicle Analysis.
For input, this operator takes road information in the form of line features from RoadInput, and three kinds of terrain information in the form of raster features from ElevationInput, GroundConditionInput and SurfaceStructureInput. An optional RestrictedAreaInput can give areas that are forbidden to pass through, but for this operator it is usually simpler to just display the forbidden areas in a separate layer.
The operator will then estimate the speed of a specified VehicleType in terrain and on roads.
For the speeds in terrain, the output will be an 8-bit raster where each cell will contain an integer representing the speed (in km/hour) of the vehicle through that cell. The cell value 255 means undefined. The terrain speeds are first calculated as real numbers; when they are placed in the integer output raster they are always rounded up, to preserve the distinction between zero and positive speeds.
For the speed on roads, the output will be copies of the input road features, with an extra attribute tsopRoadSpeed of type Double giving the speed in km/hour.
However, since the road speed mainly depends on the RoadClass which normally is already clear from the basic road visualization, the road line output from the operator is usually less interesting than the terrain speed raster.
The operator should normally be used under a TileLayer, but if you also use the RestrictedAreaInput and the restricted areas are modified, the application will need to flush the cache of the OrdinaryLayer.
There is a sample map configuration, terrain_speed_operator.px, that you can try in Carmenta Explorer; it has one restricted area that cannot be edited. The operator is also used in a simpler way in auxiliary layers of two other samples, terrain_route_operator.px and terrain_access_operator.px.
In general, the estimated terrain speeds can depend on the local travel direction, but you cannot specify that you want your vehicle to pass through some area going toward northeast, for example. So, the operator will try several travel directions through each terrain point, and then use the fastest, the slowest or the average, according to the TravelDirection property.
 |
 |

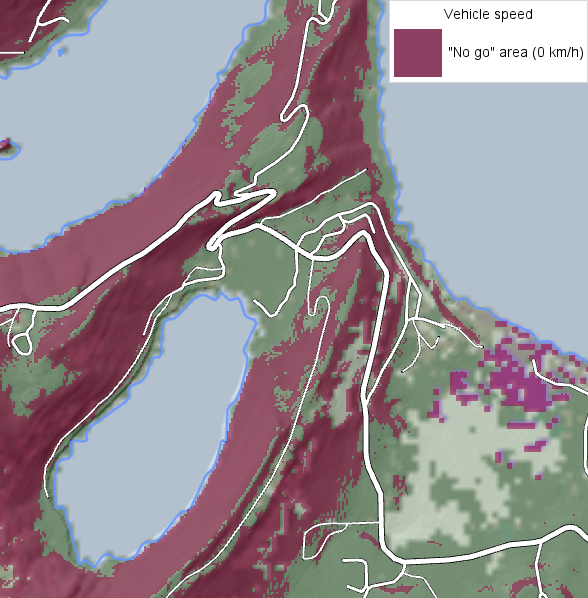

As in the screenshot above, it is often enough to use a single color to display only the "no go" areas where the speed is zero, and rely on TerrainRouteOperator or TerrainAccessOperator for more detailed analysis. The terrain_speed_operator.px sample configuration does use a second color for "slow go" areas.

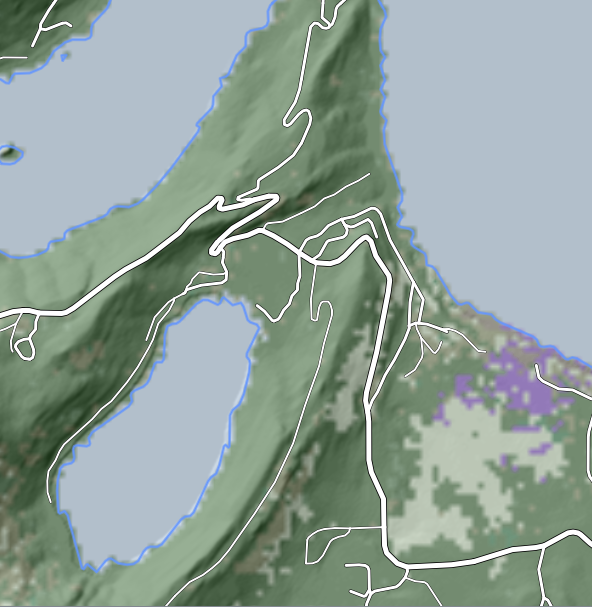

But it can be challenging to use colors for the terrain speeds, since they blend with or obscure the background map colors. In the screenshot above, the red "no go" color was drawn on top of the background map and was made semi-transparent to allow the hillshading to be seen, which gave a side-effect that "no go" areas caused by purple wetlands get a slightly different hue than "no go" areas caused by steep dark-green forests. This hue variation might be regarded as good thing: once you have learned that all reddish hues are "no go", you can also learn to recognize the slightly bluish red areas as wetlands. A different compromise is possible: display the layer with terrain types first, then the layer with red "no go" areas opaquely on top, and finally add a hillshading layer with semi-transparency or blendMode = Multiply. This compromise would allow the hillshading to be seen everywhere, and would give the same red hue to all "no go" areas, which is good if you want a uniform "no go" hue, but bad if you try to recognize wetlands.
And one should not forget the many people who suffer from red-green color blindness.

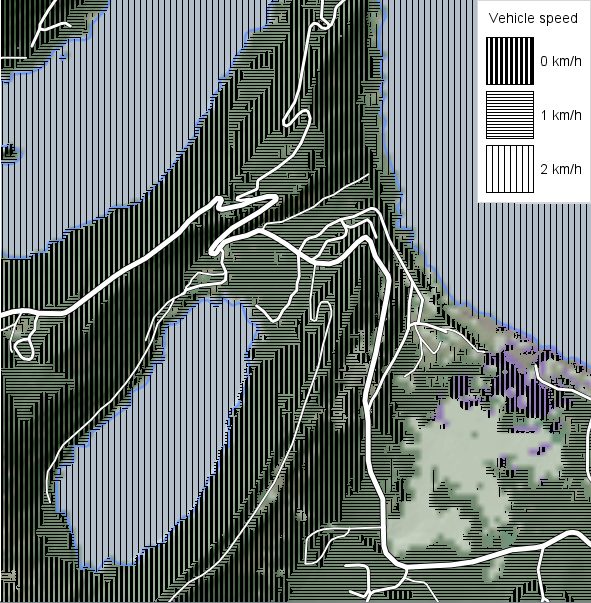

In the screenshot below, we have passed the terrain speed raster through an IsolineOperator configured to generate the polygons between speed isolines, so that the speeds can be displayed with polygon fill patterns instead.
 |
Inheritance Hierarchy
System.Object (not available in C#)
EngineObject
Operator
TerrainMobilityOperator
TerrainSpeedOperator
Platforms
Windows, Linux, Android
See Also
Reference
Operators Module
TerrainAccessOperator
TerrainRouteOperator
TerrainSpeed
TerrainVehicleType
Terrain Vehicle Analysis
TerrainSpeedOperator Members
The TerrainSpeedOperator type has the following members.
