PipeOperator Class
Converts 3D line features to cylindrical mesh features.
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CEOperators assembly)
Syntax
public class PipeOperator : UnaryOperator
Remarks

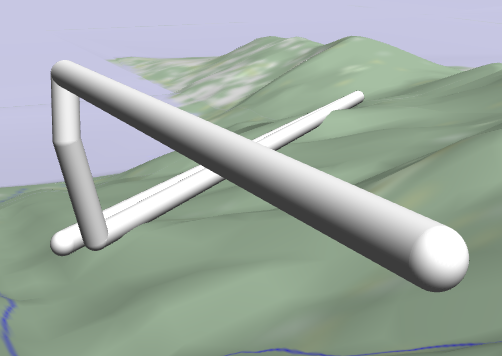

This operator converts converts 3D line features into pipe-shaped mesh features, which allows a better 3D visualization than is possible with a plain LineVisualizer.
![]() |
Inheritance Hierarchy
System.Object (not available in C#)
EngineObject
Operator
UnaryOperator
PipeOperator
Platforms
Windows, Linux, Android
PipeOperator Members
The PipeOperator type has the following members.
Constructors
Name | Description |
---|---|
PipeOperator | Initializes a new instance of the PipeOperator class. |
Properties
Name | Description |
---|---|
Accuracy | Gets or sets the number of edges in the cross-section polygon of the pipes. |
Description | Gets or sets a short description of the operator. Inherited from Operator |
DisplayName | Gets or sets a display name for the operator. Inherited from Operator |
Input | Gets or sets the input operator, from which this operator reads features. Inherited from UnaryOperator |
IsDisposed | Gets a value that tells whether the current PipeOperator has been disposed. Inherited from EngineObject |
IsoMetadataDocument | Gets or sets the path to an ISO 19139 metadata document for the operator. Inherited from Operator |
Name | Gets or sets the name of the operator. Inherited from Operator |
NativeHandle | Gets the native Carmenta Engine kernel object the current PipeOperator represents. Inherited from EngineObject |
Radius | Gets or sets the pipe radius. |
IUserProperties.UserProperties | Gets the AttributeSet that contains the user properties. Inherited from IUserProperties |
Methods
Name | Description |
---|---|
Clone | Creates a copy of an object. Inherited from EngineObject |
Dispose | Releases the reference to the native Carmenta Engine kernel instance the EngineObject represents. Inherited from EngineObject |
Equals | Determines whether this instance is equal to another. Inherited from EngineObject |
FindChildObject | Overloaded. Finds the child object with the specified name. Inherited from Operator |
FlushCache | Marks the layer as flushed which will release cached resources during the next update. Inherited from Operator |
GetChildObjects | Overloaded. Gets the child objects of the current object. Inherited from Operator |
GetFeatures | Overloaded. Gets features from the operator chain. Inherited from Operator |
GetLocalizedDescription | Gets a localized version of the operator description in a specific language. Inherited from Operator |
GetLocalizedDisplayName | Gets a localized version of the operator display name in a specific language. Inherited from Operator |
GetLocalizedIsoMetadataDocument | Gets the path to an ISO 19139 metadata document for a specific language. Inherited from Operator |
GetRasterFeature | Overloaded. Gets raster features from the operator chain and merges them into a single raster. Inherited from Operator |
HasLocalizedDescription | Checks if a localized version of the operator description is available in a specific language. Inherited from Operator |
HasLocalizedDisplayName | Checks if a localized version of the operator display name is available in a specific language. Inherited from Operator |
HasLocalizedIsoMetadataDocument | Checks if an ISO 19139 metadata document is available for a specific language. Inherited from Operator |
SetLocalizedDescription | Sets a operator description in a specific language. Inherited from Operator |
SetLocalizedDisplayName | Sets a operator display name in a specific language. Inherited from Operator |
SetLocalizedIsoMetadataDocument | Sets the path to an ISO 19139 metadata document for the operator, for a specific language. Inherited from Operator |
