MilitaryDAttributes Class
Defines which Feature attributes are mapped to MIL-STD-2525D and App6D modifier fields.
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CETactical assembly)
Syntax
public class MilitaryDAttributes : MilStd2525CAttributesRemarks
The MilitaryDAttributes class specifies which attributes in a Feature are read by a TacticalVisualizer to visualize features according to the MIL-STD-2525D and App6D specifications.

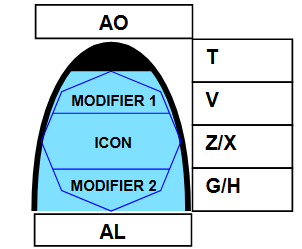

Point symbols in Appendix B (Space)
 |
Field | Property | Title |
|---|---|---|
A | Digit in Sidc | Symbol Code |
G | Staff Comments | |
H | Additional Information | |
T | Unique Designation (Track Number) | |
V | Type | |
Q | Direction | |
X | Altitude | |
Z | Speed | |
AL | Digit in Sidc | Operational Condition |
AO | Engagement Bar |
Point symbols in Appendix C (Air)
 |
Field | Property | Title | |
|---|---|---|---|
A | Digit in Sidc | Symbol Code | |
G | Staff Comments | ||
H | Additional Information | ||
P | IFF/SIF | ||
T | Unique Designation (Track Number) | ||
Q | Direction | ||
V | Type | ||
X | Altitude | ||
Z | Speed | ||
AL | Digit in Sidc | Operational Condition | |
AO | Engagement Bar |

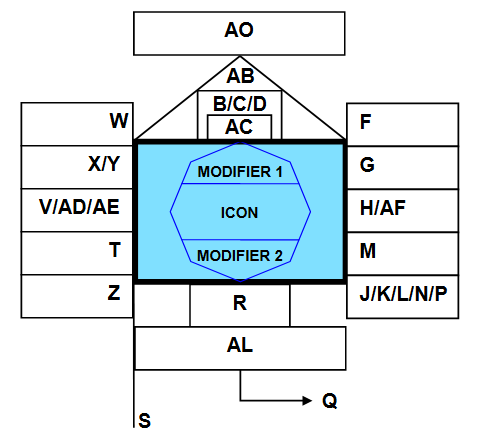

Point symbols in Appendix D (Land)
 |
Field | Property | Title |
|---|---|---|
A | Symbol Code | |
B | Digits 9-10 in Sidc | Echelon |
C | Quantity | |
D | Digit 8 in Sidc | Task Force Indicator |
F | Reinforced or Reduced | |
G | Staff Comments | |
H | Additional Information | |
J | Evaluation Rating | |
K | Combat Effectiveness | |
L | Signature Equipment | |
M | Higher Formation | |
N | Hostile | |
P | IFF/SIF | |
S | Digit 8 in Sidc | Headquarters Staff |
T | Unique Designation (Track Number) | |
Q | Direction | |
V | Type | |
W | Date-Time Group (DTG) | |
X | Altitude | |
Y | Location | |
Z | Speed | |
AA | Special C2 Headquarters | |
AB | Digit 8 in Sidc | Feint/Dummy Indicator |
AC | Installation | |
AL | Digit 7 in Sidc | Operational Condition |
AO | Engagement Bar | |
AE | Equipment teardown time | |
AR | Special Designator |
* App6D only

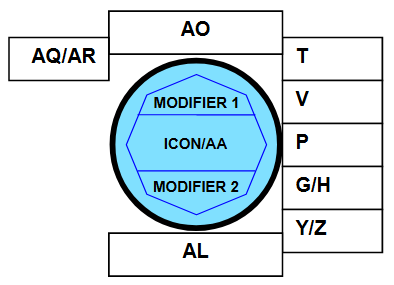

Point symbols in Appendix E (Surface)
 |
Field | Property | Title |
|---|---|---|
A | Symbol Code | |
G | Staff Comments | |
H | Additional Information | |
P | IFF/SIF | |
T | Unique Designation (Track Number) | |
V | Type | |
Q | Direction | |
Y | Location | |
Z | Speed | |
AL | Digit 7 in Sidc | Operational Condition |
AO | Engagement Bar | |
AQ | Guarded Unit | |
AR | Special Designator |

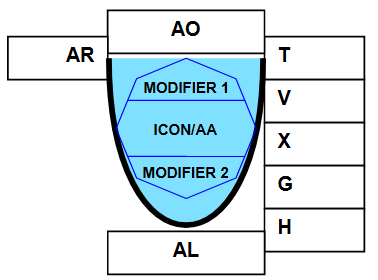

Point symbols in Appendix F (Subsurface)
 |
Field | Property | Title |
|---|---|---|
A | Symbol Code | |
G | Staff Comments | |
H | Additional Information | |
P | IFF/SIF | |
T | Unique Designation (Track Number) | |
V | Type | |
Q | Direction | |
X | Depth | |
AL | Digit 7 in Sidc | Operational Condition |
AO | Engagement Bar | |
AR | Special Designator |

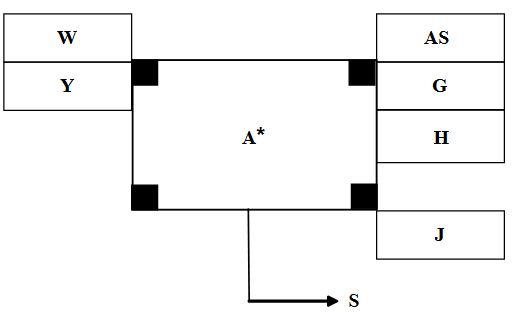

Point symbols in Appendix G (Activities)
 |
Field | Property | Title |
|---|---|---|
A | Symbol Code | |
G | Staff Comments | |
H | Additional Information | |
Q | Direction | |
Y | Location | |
W | Date-Time Group (DTG) | |
AS | Date-Time Group (DTG) |

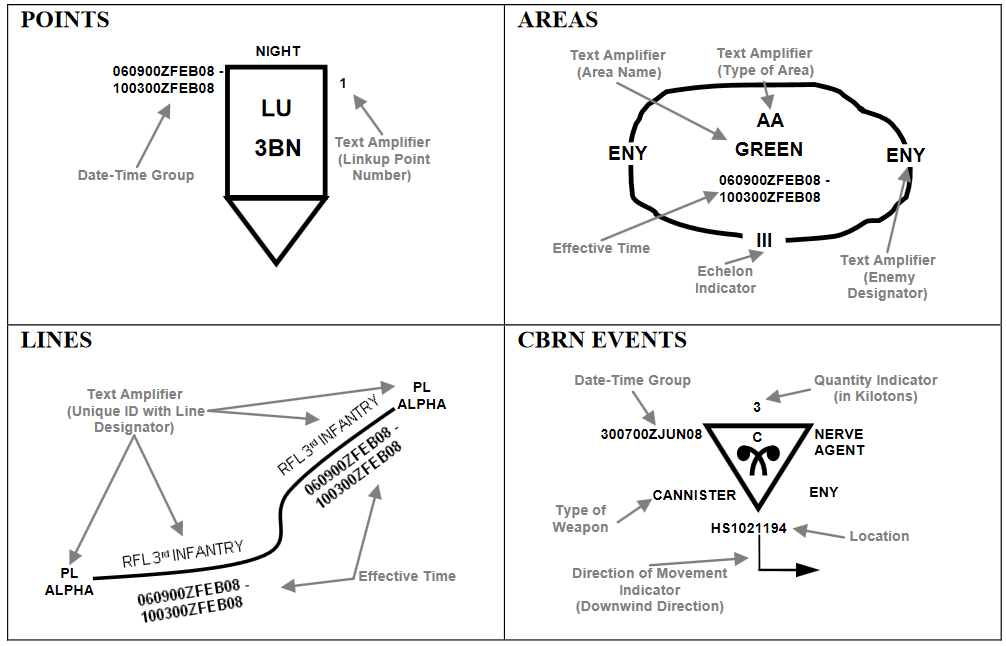

Graphics in Appendix H (Control measures)
 |
Field | Property | Title |
|---|---|---|
A | Symbol Code | |
C | Quantity | |
H | Additional Information | |
N | Hostile | |
Q | Direction | |
T | Unique Designation (Track Number) | |
V | Type | |
W | Date-Time Group (DTG) | |
Q | Direction | |
X | Depth | |
Y | Location | |
AP | Target Designator | |
AS | Date-Time Group (DTG) |
Not all fields and/or graphic modifiers are available for all types of symbols. Some are only valid for ground units, some only for group equipment etc. For a complete description of which fields and graphic modifiers are supported by which symbols we refer you to the MIL-STD-2525D specification.
When using tactical symbols with some mode of caching (TileLayer or DynamicAsync) and with direction attributes set to create an arrow, the arrow will not be correctly drawn when the view is rotated unless TacticalVisualizerParameters.CacheAsBitmap is set to false on the tactical parameters object.
Inheritance Hierarchy
System.Object (not available in C#)
EngineObject
ResourceObject
TacticalVisualizerAttributes
SidcVisualizerAttributes
MilStd2525CAttributes
MilitaryDAttributes
Platforms
Windows, Linux, Android
MilitaryDAttributes Members
The MilitaryDAttributes type has the following members.
Constructors
| Name | Description |
|---|---|
| MilitaryDAttributes | Initializes a new instance of the MilitaryDAttributes class. |
Properties
| Name | Description |
|---|---|
| AdditionalInformation | Gets or sets the attribute that specifies Additional Information. Inherited from SidcVisualizerAttributes |
| AdditionalInformation1 | Gets or sets the attribute that specifies more Additional Information. Inherited from MilStd2525CAttributes |
| AdditionalInformation2 | Gets or sets the attribute that specifies more Additional Information. Inherited from MilStd2525CAttributes |
| AltitudeDepth | Gets or sets the attribute that specifies Altitude or Depth. Inherited from SidcVisualizerAttributes |
| AltitudeDepth1 | Gets or sets the attribute that specifies an additional Altitude or Depth. Inherited from MilStd2525CAttributes |
| CombatEffectiveness | Gets or sets the attribute that specifies the Combat Effectiveness. Inherited from SidcVisualizerAttributes |
| CommonIdentifier | Gets or sets the attribute that specifies the common identifier. Inherited from MilStd2525CAttributes |
| CorridorAreaWidth | Gets or sets the attribute that specifies the width of a corridor area. Inherited from MilStd2525CAttributes |
| CountryIndicator | Gets or sets the attribute that specifies the Country indicator. |
| DateTimeGroup | Gets or sets the attribute that specifies the Date/Time Group. Inherited from SidcVisualizerAttributes |
| DateTimeGroup1 | Gets or sets the attribute that specifies an additional Date/Time Group. Inherited from MilStd2525CAttributes |
| Direction | Gets or sets the attribute that specifies the Direction. Inherited from SidcVisualizerAttributes |
| Distance | Gets or sets the attribute that specifies Distance. Inherited from MilStd2525CAttributes |
| EngagementBar | Gets or sets the attribute that specifies the Engagement Bar text. |
| EngagementBarColor | Gets or sets the attribute that specifies the Engagement Bar Color. |
| EquipmentTeardownTime | Gets or sets the attribute that specifies the equipment teardown time. Inherited from MilStd2525CAttributes |
| EquipmentType | Gets or sets the attribute that specifies the Equipment Type. Inherited from SidcVisualizerAttributes |
| EvaluationRating | Gets or sets the attribute that specifies the Evaluation Rating. Inherited from SidcVisualizerAttributes |
| FanAreaMaximumRange | Gets or sets the attribute that specifies the maximum range of a fan area. Inherited from MilStd2525CAttributes |
| FanAreaMinimumRange | Gets or sets the attribute that specifies the minimum range of a fan area. Inherited from MilStd2525CAttributes |
| FanAreaOrientation | Gets or sets the attribute that specifies the orientation of a fan area. Inherited from MilStd2525CAttributes |
| FanAreaRange | Gets or sets attribute that specifies the range of a fan area. Inherited from MilStd2525CAttributes |
| FanAreaSectorSize | Gets or sets attribute that specifies the sector size of a fan area. Inherited from MilStd2525CAttributes |
| GuardedUnit | Gets or sets the attribute that specifies the Guarded unit. |
| HigherFormation | Gets or sets the attribute that specifies the Higher Formation. Inherited from SidcVisualizerAttributes |
| Hostile | Gets or sets the attribute that specifies Hostile (Enemy). Inherited from SidcVisualizerAttributes |
| IffSif | Gets or sets the attribute that specifies IFF/SIFF Inherited from SidcVisualizerAttributes |
| IsDisposed | Gets a value that tells whether the current MilitaryDAttributes has been disposed. Inherited from EngineObject |
| Location | Gets or sets the attribute that specifies Location. Inherited from SidcVisualizerAttributes |
| Name | Gets or sets the name of the MilitaryDAttributes. Inherited from ResourceObject |
| NativeHandle | Gets the native Carmenta Engine kernel object the current MilitaryDAttributes represents. Inherited from EngineObject |
| OrbitAreaAlignment | Gets or sets the attribute that specifies orbit area alignment. Inherited from MilStd2525CAttributes |
| OrbitAreaWidth | Gets or sets the attribute that specifies orbit area width. Inherited from MilStd2525CAttributes |
| PlatformType | Gets or sets the attribute that specifies the platform type. Inherited from MilStd2525CAttributes |
| Quantity | Gets or sets the attribute that specifies Quantity. Inherited from SidcVisualizerAttributes |
| ReinforcedOrReduced | Gets or sets the attribute that specifies Reinforced or Reduced. Inherited from SidcVisualizerAttributes |
| Sidc | Gets or sets the attribute that specifies the SIDC of the symbol. Inherited from SidcVisualizerAttributes |
| SigintMobility | Gets or sets the attribute that specifies Mobility for SIGINT symbols. Inherited from MilStd2525CAttributes |
| SignatureEquipment | Gets or sets the attribute that specifies Signature Equipment. Inherited from SidcVisualizerAttributes |
| SpecialC2Headquarter | Gets or sets the attribute that specifies the Special C2 Headquarter text. Inherited from SidcVisualizerAttributes |
| SpecialDesignator | Gets or sets the attribute that specifies the Special designator. |
| Speed | Gets or sets the attribute that specifies Speed. Inherited from SidcVisualizerAttributes |
| StaffComments | Gets or sets the attribute that specifies Staff Comments. Inherited from SidcVisualizerAttributes |
| UniqueDesignation | Gets or sets the attribute that specifies Unique Designation. Inherited from SidcVisualizerAttributes |
| UniqueDesignation1 | Gets or sets the attribute that specifies an additional Unique Designation. Inherited from MilStd2525CAttributes |
| UnitSidc | Gets or sets the attribute that specifies the SIDC of a unit symbol that is part of a tactical symbol. Inherited from MilStd2525CAttributes |
| IUserProperties.UserProperties | Gets the AttributeSet that contains the user properties. Inherited from IUserProperties |
Methods
| Name | Description |
|---|---|
| Clone | Creates a copy of an object. Inherited from EngineObject |
| Dispose | Releases the reference to the native Carmenta Engine kernel instance the EngineObject represents. Inherited from EngineObject |
| Equals | Determines whether this instance is equal to another. Inherited from EngineObject |
| GetAltitudeDepth | Gets the attribute that specifies the n-th Altitude or Depth. Inherited from MilStd2525CAttributes |
| GetFanAreaMaximumRange | Gets the attribute that specifies the n-th fan area maximum range. Inherited from MilStd2525CAttributes |
| GetFanAreaMinimumRange | Gets the attribute that specifies the n-th fan area minimum range. Inherited from MilStd2525CAttributes |
| GetFanAreaOrientation | Gets the attribute that specifies the n-th fan area orientation angle. Inherited from MilStd2525CAttributes |
| GetFanAreaSectorSize | Gets the attribute that specifies the n-th fan area sector size. Inherited from MilStd2525CAttributes |
| GetUniqueDesignation | Gets the attribute that specifies the n-th unique designation. Inherited from MilStd2525CAttributes |
| GetUnitSidc | Gets the attribute that specifies the n-th SIDC. Inherited from MilStd2525CAttributes |
