LevelOfDetail Structure
Represents an input to a LevelOfDetailOperator.
Namespace: Carmenta.Engine
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
Thread safety: Members defined in this class are thread-safe.
Syntax
public struct LevelOfDetail :
System.IEquatable<LevelOfDetail>Remarks
This is a utility object that consists of a limit value and an operator. A collection of LevelOfDetail objects defines the inputs that a LevelOfDetailOperator reads data from.

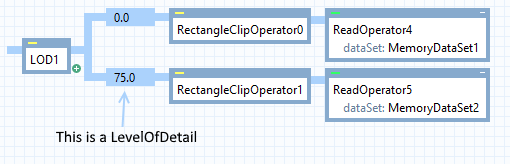

In Carmenta Studio, it looks like this:
 |
Platforms
Windows, Linux, Android
LevelOfDetail Members
The LevelOfDetail type has the following members.
Constructors
| Name | Description |
|---|---|
| LevelOfDetail | Initializes a new instance of the LevelOfDetail class. |
Properties
| Name | Description |
|---|---|
| Input | Gets the input Operator. |
| Limit | Gets the least detailed scale, or resolution (in meters), at which the input operator is used. |
Methods
| Name | Description |
|---|---|
| Equals | Overloaded. Determines whether two LevelOfDetail objects have the same value. |
| GetHashCode | Returns the hash code for this LevelOfDetail. |
 Operator == | Determines whether two specified LevelOfDetail objects have the same value. |
| Operator != | Determines whether two specified LevelOfDetail objects have different values. |
| ToString | Converts this LevelOfDetail to a human readable string. |
