App6CDraft1Attributes Class
Defines which Feature attributes are mapped to App6C Draft 1 modifier fields.
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CETactical assembly)
Syntax
public class App6CDraft1Attributes : SidcVisualizerAttributesRemarks
The App6CDraft1Attributes class specifies which attributes in a Feature are read by a TacticalVisualizer to visualize symbols according to the App6C Draft 1 specification.
Air and air weapon symbols
 |
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. See App-6(C) Draft 1 Symbol Identification Coding (SIDC) for more details about how SIDC codes are constructed and App-6(C) Draft 1 Symbols for a list of all supported symbols (air and air weapon symbols belong in hierarchy 1.X.2). | String | 15 | |
1 | The name of the attribute that contains the system track number. | String | - | |
2 | The name of the attribute that contains the call sign or weapon name. | String | - | |
3 | The name of the attribute that contains the position and movement or 3rd dimension information. | String | - | |
4 | The name of the attribute that contains the nation, a 3-letter code indicating the object's country of origin. | String | 3 | |
5 | The name of the attribute that contains implementation specific information. | String | 20 | |
Q | The name of the attribute that contains the direction of movement. The direction is specified in degrees clockwise from north. | Double | - |

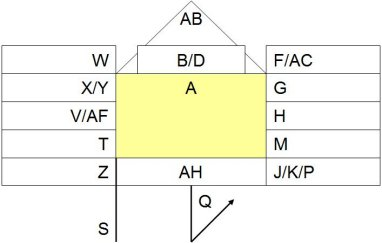

Land unit symbols
 |
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. See App-6(C) Draft 1 Symbol Identification Coding (SIDC) for more details about how SIDC codes are constructed and App-6(C) Draft 1 Symbols for a list of all supported symbols (unit symbols belong in hierarchy 1.X.3.1 and 1.X.6). | String | 15 | |
AA | The name of the attribute that contains the C2 Headquarter. | String | 9 | |
AC | The name of the attribute that contains the nation, a 3-letter code indicating the object's country of origin. | String | 3 | |
AF | The name of the attribute that contains the common identifier for the type of unit being represented. | String | - | |
AH | Indicates what type of element of a headquarters is being represented. | String | - | |
B | - | Echelon specified as part of the main symbol SIDC identifier. | - | - |
D | - | Graphic task force modifier specified as part of the main symbol SIDC identifier. | - | - |
F | The name of the attribute that contains the reinforced/reduced status of a unit. | Atom | 3 | |
G | The name of the attribute that contains an implementation specific comment. | String | 20 | |
H | The name of the attribute that contains implementation specific information. | String | 20 | |
J | The name of the attribute that contains a one-letter reliability rating and a one-number credibility rating for units, equipment and installations. | String | 2 | |
K | The name of the attribute that contains a text that indicates unit effectiveness or installation capability. | String | 5 | |
M | The name of the attribute that contains the number or title of higher echelon command. | String | 21 | |
P | The name of the attribute that contains IFF/SIF identification modes and codes. | String | 5 | |
Q | The name of the attribute that contains the direction of movement for units, equipment and installations. The direction is specified in degrees clockwise from north. The placement of the arrow varies depending on the battle dimension of the main symbol. | Double | - | |
S | - | Headquarters staff indicator specified as part of the main symbol SIDC identifier. | - | - |
T | The name of the attribute that contains the unit, equipment or installation designation. | String | 21 | |
V | The name of the attribute that contains the equipment type. | String | 24 | |
W | The name of the attribute that contains the date and time. | String | 20 | |
X | The name of the attribute that contains the altitude portion of GPS position, flight level for aircraft, depth of submerged objects, height of equipment or structure on the ground. | String | 6 | |
Y | The name of the attribute that contains the geographic location of a symbol. | String | 19 | |
Z | The name of the attribute that contains the speed of units, equipment or installations. | String | 8 |

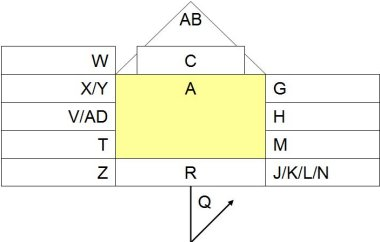

Land equipment symbols
 |
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. See App-6(C) Draft 1 Symbol Identification Coding (SIDC) for more details about how SIDC codes are constructed and App-6(C) Draft 1 Symbols for a list of all supported symbols (land equipment symbols belong in hierarchy 1.X.3.2). | String | 15 | |
AD | The name of the attribute that contains electronic intelligence notation or communications intelligence notation. | String | - | |
C | The name of the attribute that contains the number of items present. | String | 9 | |
G | The name of the attribute that contains an implementation specific comment. | String | 20 | |
H | The name of the attribute that contains implementation specific information. | String | 20 | |
J | The name of the attribute that contains the a one-letter reliability rating and a one-number credibility rating for units, equipment and installations. | String | 2 | |
K | The name of the attribute that contains the a text that indicates unit effectiveness or installation capability. | String | 5 | |
L | The name of the attribute that contains the text for hostile equipment. "!" indicates detectable electronic signatures. | String | 1 | |
M | The name of the attribute that contains the number or title of higher echelon command. | String | 21 | |
N | The name of the attribute that contains True to display the letters "ENY" which denote hostile symbols; the field is not displayed if the attribute is either False or missing. | Bool | - | |
Q | The name of the attribute that contains the direction of movement for units, equipment and installations. The direction is specified in degrees clockwise from north. The placement of the arrow varies depending on the battle dimension of the main symbol. | Double | - | |
R | - | Mobility indicator specified as part of the main symbol SIDC identifier. | - | - |
T | The name of the attribute that contains the unit, equipment or installation designation. | String | 21 | |
V | The name of the attribute that contains the equipment type. | String | 24 | |
W | The name of the attribute that contains the date and time. | String | 20 | |
X | The name of the attribute that contains the altitude portion of GPS position, flight level for aircraft, depth of submerged objects, height of equipment or structure on the ground. | String | 6 | |
Y | The name of the attribute that contains the geographic location of a symbol. | String | 19 | |
Z | The name of the attribute that contains the speed of units, equipment or installations. | String | 8 |

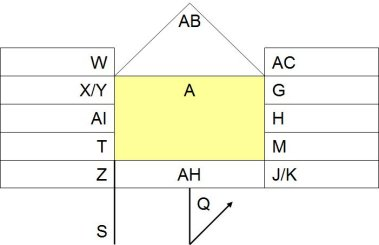

Land installation symbols
 |
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. See App-6(C) Draft 1 Symbol Identification Coding (SIDC) for more details about how SIDC codes are constructed and App-6(C) Draft 1 Symbols for a list of all supported symbols (land installation symbols belong in hierarchy 1.X.3.3 and 1.X.3.4). | String | 15 | |
AC | The name of the attribute that contains the Nation, a 3-letter code indicating the object's country of origin. | String | 3 | |
AH | The name of the attribute that indicates what type of element of a headquarters is being represented. | String | - | |
AI | The name of the attribute that indicates the component type of the installation. | String | - | |
G | The name of the attribute that contains an implementation specific comment. | String | 20 | |
H | The name of the attribute that contains implementation specific information. | String | 20 | |
J | The name of the attribute that contains a one-letter reliability rating and a one-number credibility rating for units, equipment and installations. | String | 2 | |
K | The name of the attribute that contains the capacity of the installation. | String | - | |
M | The name of the attribute that contains the number or title of higher echelon command. | String | 21 | |
Q | The name of the attribute that contains the direction of movement for units, equipment and installations. The direction is specified in degrees clockwise from north. The placement of the arrow varies depending on the battle dimension of the main symbol. | Double | - | |
S | - | Headquarters staff indicator specified as part of the main symbol SIDC identifier. | - | - |
T | The name of the attribute that contains the unit, equipment or installation designation. | String | 21 | |
V | The name of the attribute that contains the equipment type. | String | 24 | |
W | The name of the attribute that contains the date and time. | String | 20 | |
X | The name of the attribute that contains the altitude portion of GPS position, flight level for aircraft, depth of submerged objects, height of equipment or structure on the ground. | String | 6 | |
Y | The name of the attribute that contains the geographic location of a symbol. | String | 19 | |
Z | The name of the attribute that contains the speed of units, equipment or installations. | String | 8 |
Sea and subsurface symbols
|
|
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. See App-6(C) Draft 1 Symbol Identification Coding (SIDC) for more details about how SIDC codes are constructed and App-6(C) Draft 1 Symbols for a list of all supported symbols (sea and subsurface symbols belong in hierarchy 1.X.4 and 1.X.5). | String | 15 | |
1 | The name of the attribute that contains the system track number. | String | - | |
2 | The name of the attribute that contains the name of ship, hull number or task organization, designator or missioninternational call sign. | String | - | |
3 | The name of the attribute that contains the position and movement, 3rd dimension information or date time group. | String | - | |
4 | The name of the attribute that contains the country of origin, organization or any other information. | String | - | |
5 | The name of the attribute that contains implementation specific information. | String | 20 | |
Q | The name of the attribute that contains the direction of movement. The direction is specified in degrees clockwise from north. | Double | - |
Space symbols
 |
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. See App-6(C) Draft 1 Symbol Identification Coding (SIDC) for more details about how SIDC codes are constructed and App-6(C) Draft 1 Symbols for a list of all supported symbols (space symbols belong in hierarchy 1.X.1). | String | 15 | |
1 | The name of the attribute that contains the space system track number (SSTNUM). | String | - | |
2 | The name of the attribute that contains the space system name (SSNAME) or mission call sign. | String | - | |
3 | The name of the attribute that contains the georef position or trajectory. Height. | String | - | |
4 | The name of the attribute that contains the nation, a 3-letter code indicating the object's country of origin. | String | 3 | |
5 | The name of the attribute that contains implementation specific information. | String | 20 |

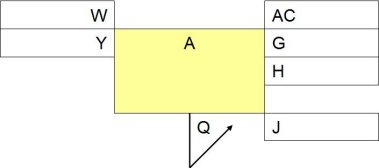

Civil activity symbols
 |
Field | Property | Description | Type | Length |
|---|---|---|---|---|
A | The name of the attribute that contains the SIDC code for the main symbol. The SIDC code also contains information about other parts of the symbol in particular: affiliation, echelon, mobility, auxiliary equipment, feint/dummy, task force and headquarter modifiers. The civil activity symbols comes from MIL-STD-2525B Appendix E. See MIL-STD-2525B Appendix E SIDC identifiers for more details about how the SIDC codes are constructed and MIL-STD-2525B Appendix E symbols for a list of supported symbols. | String | 15 | |
AC | The name of the attribute that contains the nation, a 3-letter code indicating the object's country of origin. | String | 3 | |
G | The name of the attribute that contains an implementation specific comment. | String | 20 | |
H | The name of the attribute that contains implementation specific information. | String | 20 | |
J | The name of the attribute that contains the a one-letter reliability rating and a one-number credibility rating for units, equipment and installations. | String | 2 | |
Q | The name of the attribute that contains the direction of movement for units, equipment and installations. The direction is specified in degrees clockwise from north. The placement of the arrow varies depending on the battle dimension of the main symbol. | Double | - | |
W | The name of the attribute that contains the date and time. | String | 20 | |
Y | The name of the attribute that contains the geographic location of a symbol. | String | 19 |
Inheritance Hierarchy
System.Object (not available in C#)
EngineObject
ResourceObject
TacticalVisualizerAttributes
SidcVisualizerAttributes
App6CDraft1Attributes
Platforms
Windows, Linux, Android
