AlbersEqualAreaConicProjection Class
A widely used equal-area map projection.
Namespace: Carmenta.Engine
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
Thread safety: Members defined in this class are thread-safe. Show
Syntax
public class AlbersEqualAreaConicProjection : ProjectionRemarks
This map projection, presented by Heinrich Christian Albers in 1805, is equal-area, and has true scale on its two standard parallels. Between the standard parallels, features appear too tall and narrow. Outside the standard parallels, features appear too short and fat. (Small features near a standard parallel nearly keep their true shape.)
The projection is used for medium-scale and small-scale maps (showing continents and large countries) that should be equal-area.
 |

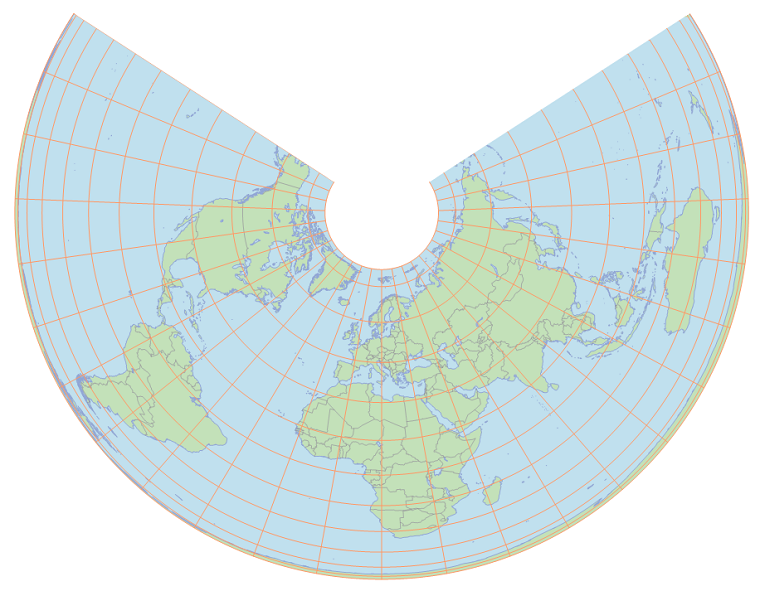

Albers Equal-Area Conic, central meridian at 15 E, standard parallels at 30 N and 60 N.
Inheritance Hierarchy
System.Object (not available in C#)
EngineObject
ResourceObject
Projection
AlbersEqualAreaConicProjection
Platforms
Windows, Linux, Android
AlbersEqualAreaConicProjection Members
The AlbersEqualAreaConicProjection type has the following members.
Constructors
| Name | Description |
|---|---|
| AlbersEqualAreaConicProjection | Creates a new Albers Equal-Area Conic projection. |
Properties
| Name | Description |
|---|---|
| Authority | Gets the name of an authority, which is often "epsg". Inherited from Projection |
| AuthorityCode | Gets the unique code for the projection instance, according to the Authority, for example "19883". Inherited from Projection |
| CentralLatitude | The central latitude, also known as latitude of origin. |
| CentralLongitude | The central longitude, also known as central meridian or longitude of origin. |
| FalseEasting | Offset for the x coordinates. |
| FalseNorthing | Offset for the y coordinates. |
| IsDisposed | Gets a value that tells whether the current AlbersEqualAreaConicProjection has been disposed. Inherited from EngineObject |
| LengthUnit | The length unit of the projected coordinates. |
 LongLat | Gets a pre-defined LongLatProjection instance. Inherited from Projection |
| Name | Gets or sets the name of the AlbersEqualAreaConicProjection. Inherited from ResourceObject |
| NativeHandle | Gets the native Carmenta Engine kernel object the current AlbersEqualAreaConicProjection represents. Inherited from EngineObject |
| StandardParallel1 | Latitude of first standard parallel, on which the scale is true. |
| StandardParallel2 | Latitude of second standard parallel, on which the scale is true. |
| IUserProperties.UserProperties | Gets the AttributeSet that contains the user properties. Inherited from IUserProperties |
Methods
| Name | Description |
|---|---|
| Clone | Creates a copy of an object. Inherited from EngineObject |
| Dispose | Releases the reference to the native Carmenta Engine kernel instance the EngineObject represents. Inherited from EngineObject |
| Equals | Determines whether this instance is equal to another. Inherited from EngineObject |
| Utm | Returns one of the 120 predefined instances of Universal Transverse Mercator. Inherited from Projection |
