S52PointStyle Enumeration
Specifies how to render S-52 point features.
Namespace: Carmenta.Engine
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
Syntax
public enum S52PointStyleValues
| Value name | Value | Description |
|---|---|---|
| Simplified | 0 | The S-52 simplified point style. Note: the simplified style is defined only for S-57 ENC data, not for S-57 AML data. |
| PaperChart | 1 | The S-52 traditional, paper chart point style. |
Remarks
 |

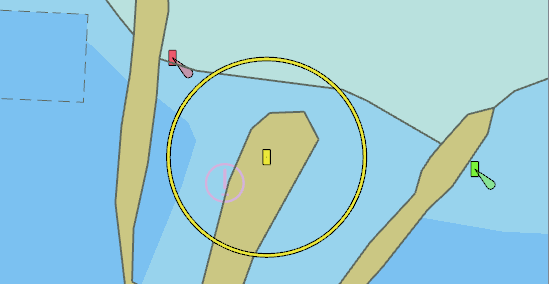

Examples of point features rendered with the simplified style.
 |

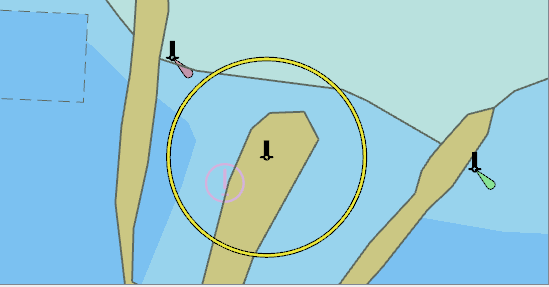

The same point features rendered with the traditional, paper chart style.
Platforms
Windows, Linux, Android
