RaveGeoFilter Enumeration
Specifies a data processing filter to use with a RaveGeoQuery.
Namespace: Carmenta.Engine
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CERaveGeo assembly)
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CERaveGeo assembly)
Syntax
public enum RaveGeoFilterValues
| Value name | Value | Description |
|---|---|---|
| None | 0 | No data processing. |
| PolygonBorder | 1 | Indicates that polygons are converted to lines representing their borders. |
| PolygonExteriorBorder | 2 | Indicates that polygons are converted to lines representing only their exterior borders. |
| PolygonInteriorBorder | 3 | Indicates that polygons are converted to lines representing only their interior borders. |
Remarks
The filter can be used to convert polygons to lines representing their interior or exterior borders.
 |

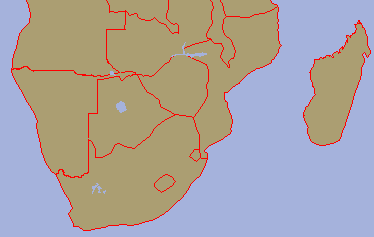

PolygonBorder: Filter that calculates the border around polygons.
 |

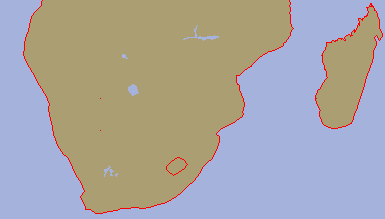

PolygonExteriorBorder: Filter that calculates the exterior border around polygons.
 |

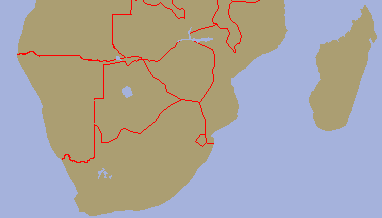

PolygonInteriorBorder: Filter that calculates the interior border around polygons.
Platforms
Windows, Linux
