AlignX Enumeration

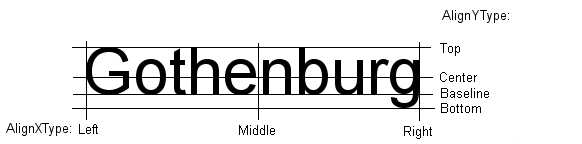

Specifies the horizontal alignment of a TextVisualizer or PointVisualizerSet.
Namespace: Carmenta.Engine
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
NuGet/Assembly: Carmenta.Engine.5.16.2.nupkg (in the CECore assembly)
Syntax
public enum AlignXValues
| Value name | Value | Description |
|---|---|---|
| Left | 0 | Indicates that the text/symbol should be left aligned, i.e. its left edge should be positioned at the insertion point. |
| Right | 2 | Indicates that the text/symbol should be right aligned, i.e. its right edge should be positioned at the insertion point. |
| Middle | 6 | Indicates that the text/symbol should be centered horizontally, i.e. its vertical center line should be positioned at the insertion point. |
| None | 7 | Indicates that a PointVisualizerSet should not apply any extra alignment to the presentation. This value is invalid for text visualizers. |
Remarks
 |
Platforms
Windows, Linux, Android
